Roads Rehabilitation Requirements Review

Road Rehabilitation & Asset Life

Takeaway: Pavements fail fastest when water, loading, and climate combine. Moisture ingress, heavy-vehicle demand, and poor drainage/maintenance accelerate deterioration; timely rehab resets the curve and lowers whole-of-life cost.

  • Urban streets: Utility trenches and reinstatement joints admit water; shallow services and poor trench compaction create weak lanes; frequent cut-ins overwhelm surface waterproofing.
  • Rural roads: Inadequate swale and shoulder maintenance drives edge moisture into the base/subbase, causing edge breaks, rutting, and loss of support.
  • Heavy vehicles: High ESAs, turning and braking at intersections/industrial routes concentrate damage; overlays or deep-lift rehab may be required sooner.
  • Climate & drainage: Wet–dry cycles, flooding, and heat soften binders and raise subgrade moisture; effective surface/subsurface drainage and seal condition are critical.
  • Routine maintenance: Timely reseals, crack sealing, shoulder grading and swale re-grading control water pathways and defer structural treatments.

Typical life extensions: Reseal 5–10 yrs • Overlay 10–15 yrs • Partial/Full-depth 15–20+ yrs.

Cost markers are indicative only; actual scope sets the budget.

Reseal Overlay Rehabilitation Drainage

References

    • Austroads — Guide to Pavement Technology (incl. Part 5: Pavement Evaluation & Treatment Design)
    • Austroads — Guide to Road Design Part 5A: Drainage — Road Surface, Networks, Basins & Subsurface (2024)
    • IPWEA — Practice Note 9: Road Pavements (Visual Assessment Code) Suite
    • VicRoads / DoT Vic — Technical Note TN108: Selection of Rehabilitation Treatments for Granular Pavements
    • Department of Transport & Planning (Vic) — Technical Publications (Specifications, Supplements & Standards)

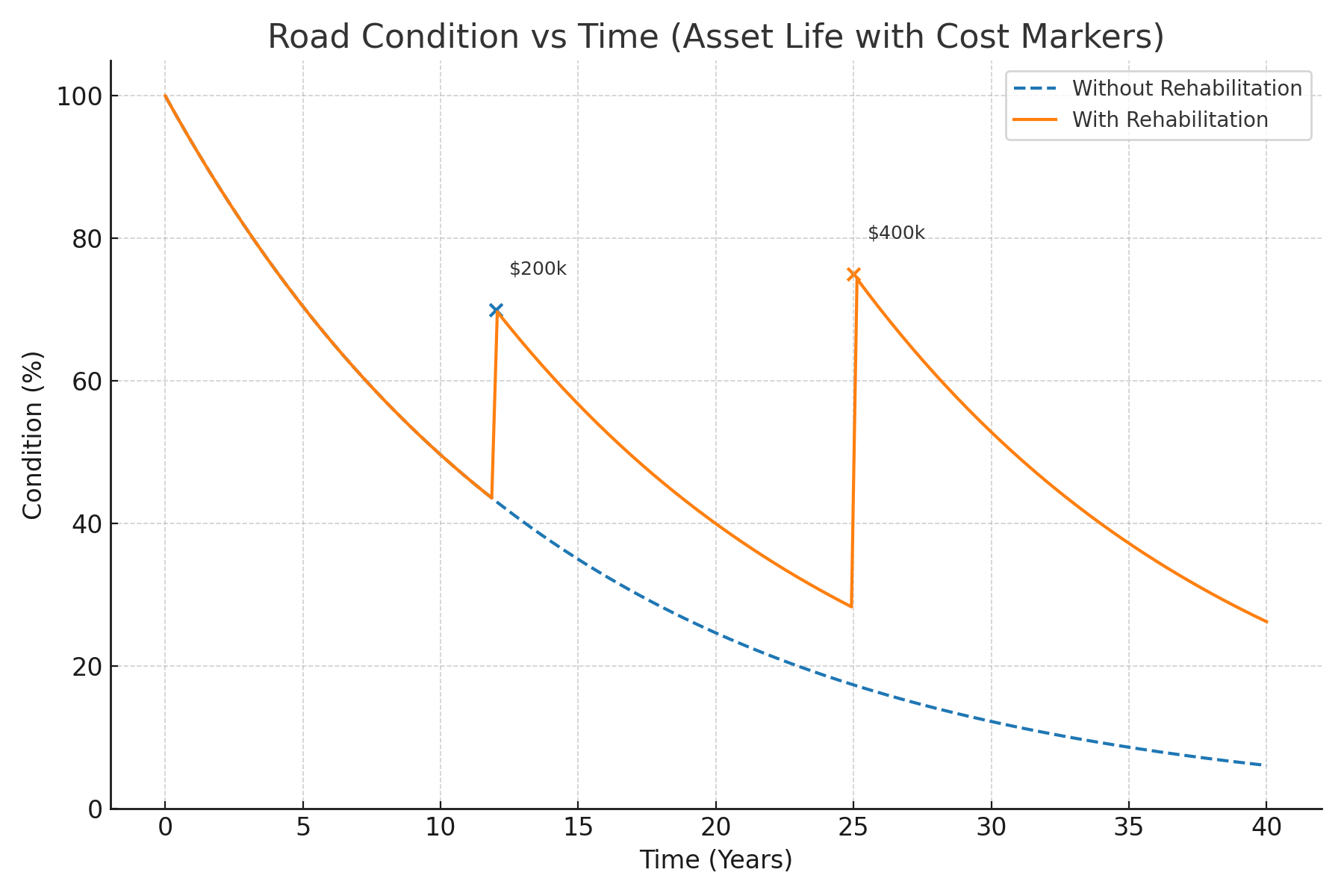

Road condition vs time with rehabilitation and cost markers
Example interventions at Year 12 (~$200k) and Year 25 (~$400k) vs no-rehab trajectory.

Bridges & Box Culverts

Bridges & Box / Pipe Culverts — Asset Life & Fitness-for-Purpose

Takeaway: Cross-drainage assets must be both structurally sound and hydraulically adequate. Condition is driven by fatigue/ageing, traffic loading, moisture and climate; service risk is driven by conveyance capacity, blockage/scour and overtopping consequence. We size for hydraulic adequacy to protect the major road asset.

  • Pipe culverts: Repeated overlays, trenching near barrels, and heavy-vehicle fatigue cycles reduce ring stiffness and bedding support over time. Condition typically declines faster than boxes if bedding/compaction is poor.
  • Box culverts: Slower structural decay, but joints, differential settlement, and scour drive step changes in condition late in life.
  • Hydraulic adequacy: Councils often focus on structural condition and overlook conveyance. Every cross-drainage structure should be checked against target ARI/depth–velocity limits to avoid road overtopping, embankment damage and safety risks.
  • Bridges: Require monitoring with clear triggers: routine inspections, detailed assessment (load rating/fatigue), and end-of-life planning.

Routine maintenance & climate: Debris clearing, apron/wingwall repairs, shoulder grading, and scour protection reduce blockage and moisture attack; wet–dry and flood cycles accelerate deterioration if drainage is poor.

Hydraulic Check Scour & Blockage Fatigue Inspection Triggers

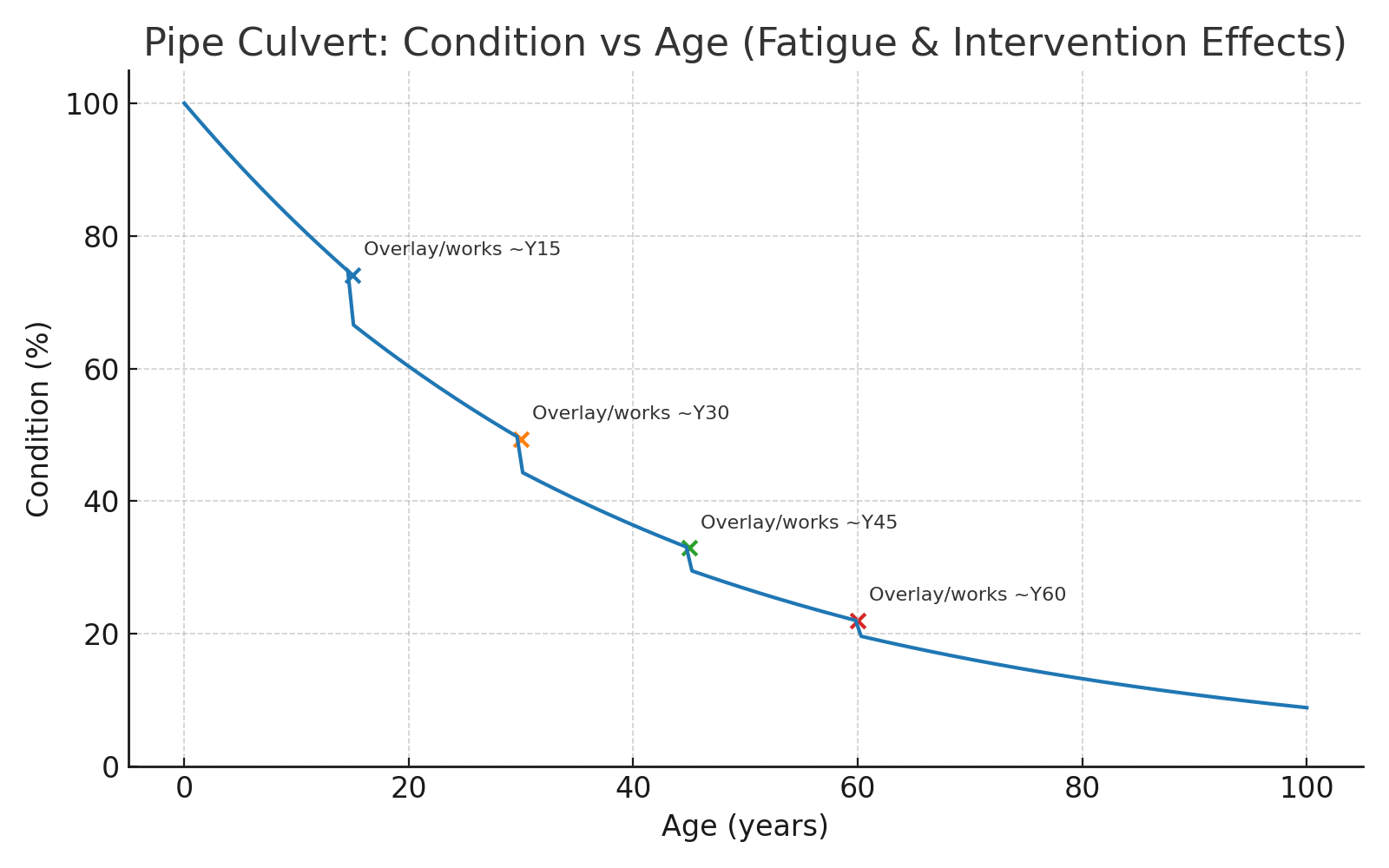

Pipe culvert condition versus age with fatigue and intervention effects
Pipe culvert: faster decay with fatigue cycles and overlay/utility interventions.

Box Culvert – Late-Life Risks

Condition trend shows slower decay but step changes from joints/scour events; hydraulic checks prevent overtopping and embankment loss.

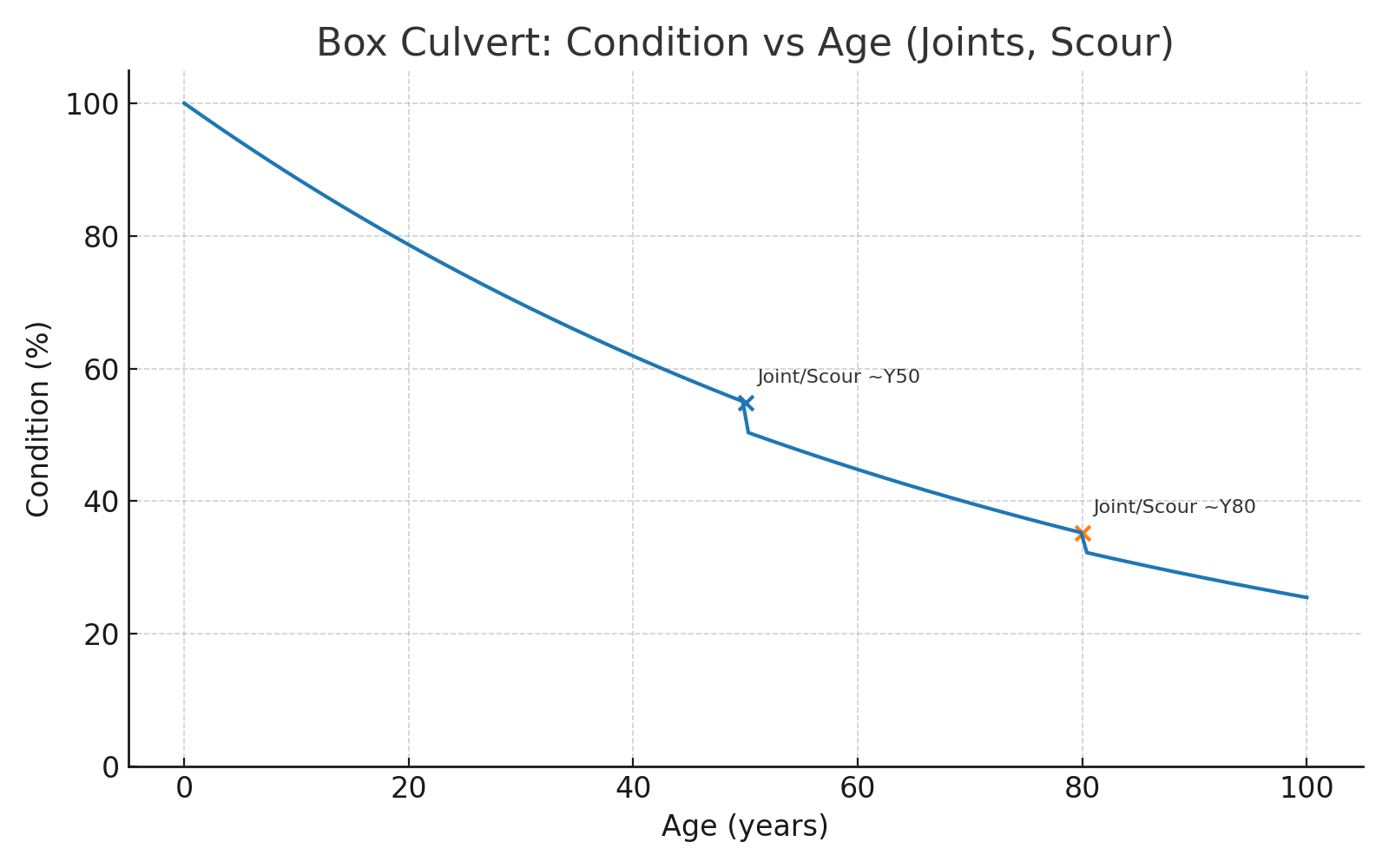

Box culvert condition versus age with joints and scour effects
Box culvert: joint and scour effects create late-life condition drops.

Bridge – Inspection Triggers

Use trigger bands to escalate from routine inspections to detailed assessment (load rating/fatigue) and end-of-life planning.

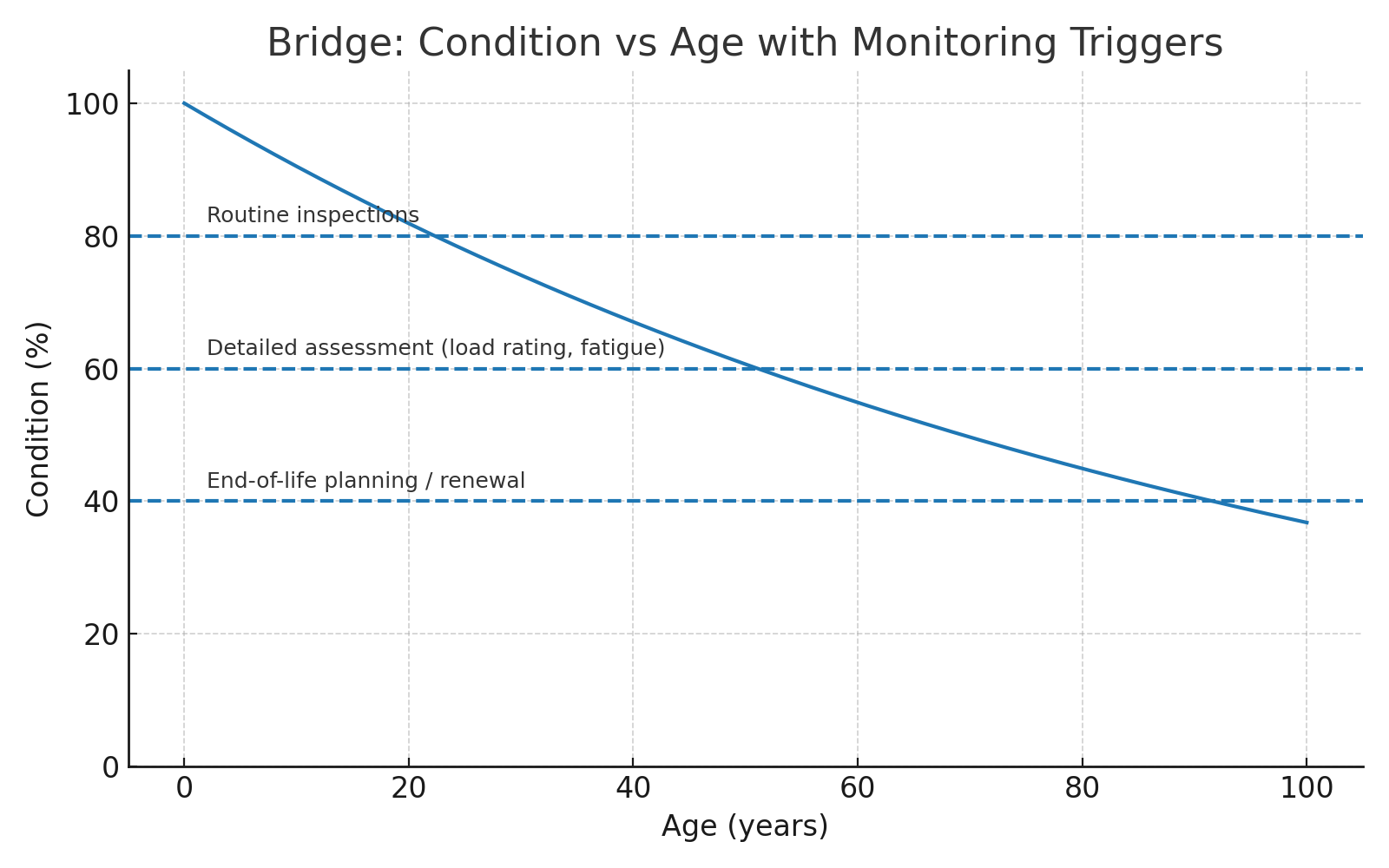

Bridge condition versus age with inspection trigger bands
Bridge: routine (≈80%), detailed (≈60%), end-of-life planning (≈40%).
  • Austroads — Guide to Bridge Technology (inspection, load rating, rehabilitation)
  • Austroads — Guide to Pavement Technology (drainage & moisture effects)
  • AS 5100 — Bridge Design (actions, durability, assessment)
  • Austroads Publications — Culvert design & hydraulic performance guidance
  • DoT Victoria — Technical Publications (structures, drainage, supplements)

Drainage & Overland flow

Drainage modelling is an approximation of how systems perform under different rainfall scenarios. We analyse 5–10 year minor events against the drainage network, then address discharge gaps in major events by directing flows through intersections, rivers, or detention basins. Sag pits are integrated into larger stormwater systems to avoid localised flooding. We help councils strengthen networks, close discharge gaps, and build infrastructure resilient to major events.

Feature Sag Pit (Low Point Inlet) Grade Pit (On-Slope Inlet)
Location Placed at the lowest point (sag) of the road where water naturally collects. Installed along the grade of a street where water flows past.
Hydraulic Demand Handles both on-grade flow and ponded water — very high capacity demand. Only intercepts part of the flow; excess continues downstream.
Flooding Risk High — if blocked, localised ponding and flooding occur. Lower — water can bypass to next pit if blocked.
Design Challenge Must connect to a reliable major drainage system to avoid failures. Spacing along the road is critical to manage spread width.
Interesting Fact Often designed with multiple side-entry and grate combinations to reduce blockage risk. Acts like a “safety net,” catching flow progressively along the kerb.
  • Austroads Guide to Road Design Part 5A: Drainage Design
  • Australian Rainfall & Runoff (ARR) 2019 – Book 9: Runoff in Urban Catchments
  • AS/NZS 3500.3: Plumbing and Drainage – Stormwater Drainage
  • VicRoads Drainage Design Manual
  • Stormwater Australia – Guidelines & Resources
Go to Service
Wall Type Description Best Suited For Interesting Fact
Timber Sleeper Economical and quick to install using treated timber posts and sleepers. Low-height walls in landscaping, residential or temporary works. Can be prefabricated and installed in tight access areas.
Reinforced Concrete Cast-in-place or precast concrete with steel reinforcement for strength. Permanent structures needing durability and higher load capacity. Often designed with architectural finishes for urban aesthetics.
Gabion Wire mesh baskets filled with rock, providing mass and drainage. River training, erosion control, flexible foundation conditions. They adapt to ground movement and allow vegetation growth.
Sheet Pile Interlocking steel or vinyl sheets driven into the ground for cut-off and support. Deep excavations, waterfronts, or where space is limited. Can be used temporarily and extracted for reuse.
Mechanically Stabilized Earth (MSE) Soil reinforced with layers of geogrid or metal strips, faced with panels or blocks. High walls, bridge abutments, or embankment support. Cost-effective for very tall walls compared to conventional RC walls.

    References

  • Austroads Guide to Geotechnical Investigation and Design
  • AS 4678: Earth-retaining Structures
  • ICE Manual of Geotechnical Engineering
  • Civil’s Guide – Retaining Wall Design Overview
  • Geosynthetica – MSE Wall Design Resources

Safety in Design Process

  1. Identify Hazards: Spot and document risks early in design.
  2. Assess Risks: Analyse likelihood and consequence.
  3. Apply Controls: Use elimination, substitution, or engineering solutions.
  4. Consult & Document: Engage stakeholders, maintain a Safety in Design register.
  5. Review: Continually refine through lessons learned and audits.

    References

  • Safe Work Australia – Safety in Design Guidance
  • Austroads Guide to Safety in Design
